Product Description
General Information
Brand Name: Adaptec
Manufacturer Part Number: 2271100-R
Manufacturer Website Address: http://www.adaptec.com
Manufacturer: Adaptec, Inc
Marketing Information:
The Series 6 family of high-performance Adaptec Unified Serial (SATA/SAS) RAID controllers offers maximum performance, scalability and flexibility. With the enhanced bandwidth of its 6 Gb/s SAS2.0 interfaces and the PCIe Gen2 host connection it offers up to 60% higher sustained sequential throughput than previous generation controllers.
Based on PMC-Sierra's market-leading, multi-core SRC 8x6G RAID-on-Chip (RoC) the Adaptec RAID 6405 can deliver up to 2 GB/s sustained data transfer rate to the host. Peak performance is up to 4.8GB/s through the SAS 2.0 interfaces and 4.0GB/s through the PCIe Gen2 host interface. Using SAS expanders, it can connect up to 256 SATA/SAS.
The Adaptec RAID 6405 supports a broad range of operating systems, compatibility with more than 300 third-party devices, and full integration with Adaptec Storage Manager for centralized management of all Adaptec RAID controllers on the network.
Product Model: 6405

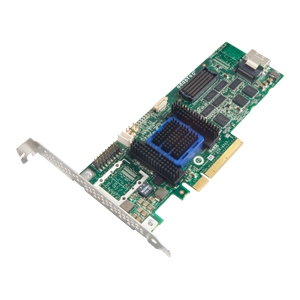

Product Name: 6405 4-port SAS RAID Controller
Product Series: 6
Product Type: SAS Controller
Interfaces/Ports
Number of SAS Ports (Internal): 4
SAS Connector Details: 1 SFF-8087
Total Number of SAS Ports: 4
Miscellaneous
Green Compliance Certificate/Authority: REACH
RoHS
WEEE
Green Compliant: Yes
Package Contents: •6405 4-port SAS RAID Controller
•Additional low Profile Vented Bracket
•Quick Installation Guide
•Software and Documentation CDs
Platform Supported: PC
SPARC
Physical Characteristics
Card Height: Low-profile
Form Factor: Plug-in Card
Height: 63.5 mm
Width: 167.6 mm
Technical Information
Controller Type: 6Gb/s SAS
Serial ATA/600
Host Interface: PCI Express 2.0 x8
RAID Levels: 0
1
10
1E
5
5EE
6
JBOD
RAID Supported: Yes
