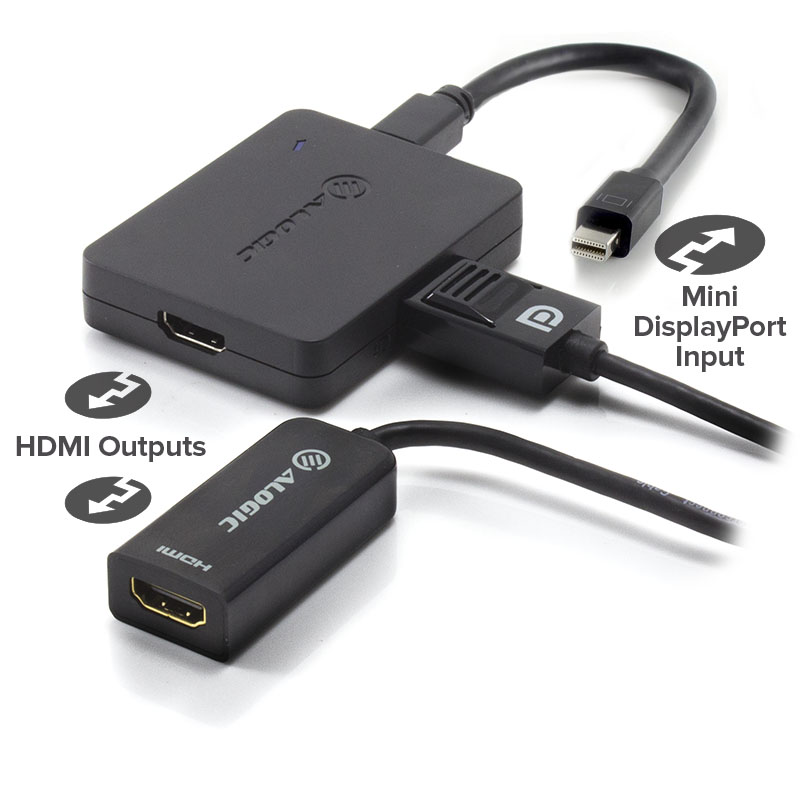

ADAPTER mini DISPLAYPORT to 2 x HDMI, ALOGIC SmartConnect mini DisplayPort 1.2 to 2 x HDMI Female MultiDisplay MST Hub Kit, Powered via Micro-B +5VDC, MST-MDPHD2
Contact I.Store for more information about this product
Click Here.
Product Description
PRODUCT DESCRIPTION
The ALOGIC SmartConnect Mini DisplayPort 1.2 to 2 x HDMI Female MultiDisplay MST Hub allows you to connect up to two displays from a single DisplayPort output. The SmartConnect hub utilises innovative DisplayPort technology that supports 2 video connections simultaneously. You can extend content on the 2 displays at the same time for gaming, graphics design or spreadsheet analysis. The adapter is plug and play and no drivers are required.
PRODUCT SPECIFICATION
* Interface: Mini DisplayPort™ v1.2 / 1.1a
* Video input Connectivity: DisplayPort™ Male
* Power Input: Micro-B +5VDC@1A Power Input.
* Video output Connectivity: 2-port HDMI Ver1.4 Female
* Audio output Connectivity: Digital Audio output over DisplayPort or HDMI connection
* LED: Blue LED indicates DisplayPort source link status
* Resolution Support
-DisplayPort 1.1 SST or Mini DisplayPort1.2 SST source:
max 1920x1080piex@60Hz each monitor, 3840x1200piex@60Hz collage-display (ViewXpand mode.)GPU*
* Display Resolution and Maximum Number of Monitors : DisplayPort 1.2 offers the higher pixel rate available, there is a limitation in how many pixels can be sent down the display pipe. The data below provides maximum monitor count vs. display resolution, based and DisplayPort 1.2 bandwidth limits. It is not required that all of the screens use the same resolution.
* Display Resolution(standard 60 frames per second refresh rate) based on DisplayPort 1.2 Bandwidth
1680 x 1050 (WSXGA): 5
1920 x 1080 (1080p) or 1920 x 1200: 4
2560 x 1600 (WQXGA): 2
3840 x 2160 (UltraHD, 4K) or 4096 x 2160 (4K x 2K): 1
* Power Consumption 1.45W : +3.3VDC DisplayPort Bus Power
* Power Connector 1-port Micro-B USB port +5VDC in (Reserved)
* Dimensions 70x54x14mm (0.23x0.18x0.05ft)
* O.S. support : Windows XP/2003/Vista/7/8/8.1, 2008/2012, (32/64-bit)
* Environment : Operation temp. 0 °C ~ 40 °C (32-104°F)
* Operation humidity: < 85% non-condensing
* Storage temp. -10 °C ~ 85 °C (14~176°F)
PACKAGE INCLUDES
* MDP-SPL-ADP x1
* DP-HDMI-ADP x1
* Mini DisplayPort Male to Mini DisplayPort Male cable 25cm x 1
* DisplayPort Male to Mini DisplayPort Male cable 25cm x 1
* Micro USB Cable 25cm X 1
* Quick Installation Guide X 1
PRODUCT FEATURE
*Allows you to connect up to 2 displays from a single Mini DisplayPort output.
* No additional software to install, just Plug-and-Play.
* Works with Surface Pro 2/3/4 and Surface 3, , desktop or notebook enabled with a Mini DisplayPort/DisplayPort output.
* Utilises new Multi-Transport (MST) protocols
