Product Description

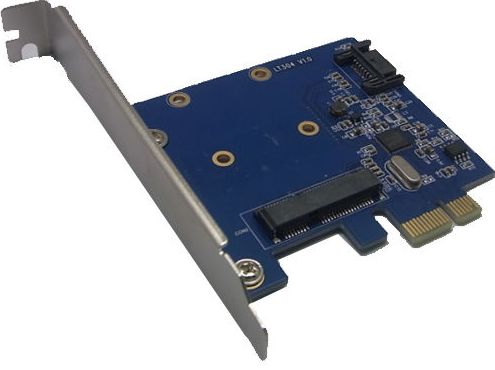

•One 7Pin SATA connector for HDD, SSD, Optical Drive, Port Multiplier connection and one mSATA 52Pin socket for mSATA SSD installed on board
•Regular size PCIe bracket on board and Low Profile bracket included
•Low Profile PCIe Form Factor
•Hardware RAID controller to offload host CPU for max performance
•Supports PCIe 1.0 and PCIe 2.0 motherboard
•Compliant with 5Gbps PCI Express 2.0
•Fully compliant with Serial ATA specifications 3.0 transfer rate of 6Gbps
•Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive
•Supports Non-Raid mode for Optical Drive and Blu-Ray Drive
•When SSD & HDD installed, supports Non-Raid, Hardware RAID0, Hardware RAID1, HybridDrives Mode
•Supports ATA and ATAPI commands
•Supports Native Command Queuing (NCQ)
•Supports SATA FIS-based or Command-based switching Port Multiplier
•SATA Hot-plug capability
•Two Pin headers on board for drive LED connection
•BIOS on board support Windows OS booting
•Built-in AHCI inbox driver support 64bit / 32bit Windows 8, Win7, Vista, 2008, 2012, Linux and Mac 10.x, no additional driver required
•Supports Windows XP driver
•Supports Windows GUI & BIOS, Mac GUI to configure Hardware RAID 0, RAID 1 and max two RAID groups
•Fully RoHS compliant
