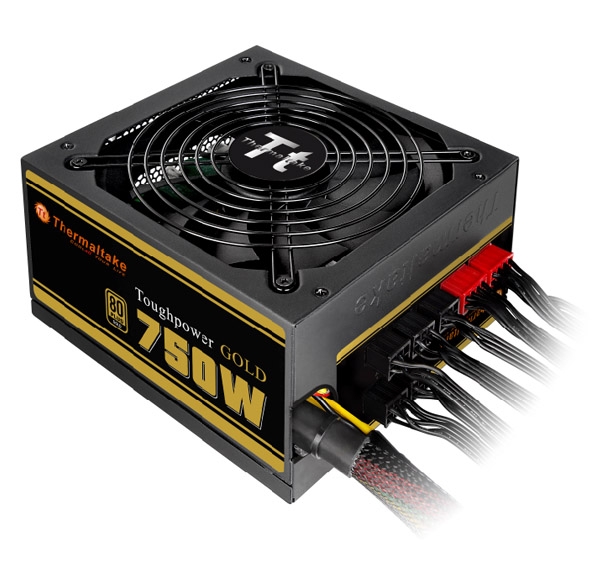

Product Description
P/N TP-750M
Model TP-750MPCGAU
Type Intel ATX 12V V2.3 & EPS 12V standards
Max. Output Capacity 750W
Peak Output Capacity 900W
Color Black
Dimension (H x W x D) 86mm x 150mm x 160mm
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time 16msec (minimum) @ 75% of maximum load at 100 - 240Vac input.
Input current 8A / 4A
Input Frequency Range 50 Hz - 60 Hz
Input Voltage 100 Vac- 240 Vac
Operating Temperature 0? to +40?
Operating Humidity 10% to 90%,non-condensing
Storage Temperature -20 ? to +60 ?
Storage Humidity 5% to 95%, non-condensing
Cooling System 135mm Fan, 1800R.P.M.±10%
Efficiency 87-90% efficiency @ 20-100% load
MTBF 120,000 hrs minimum
Safety Approval CE/CB+Baurt mark/ FCC certification
Max Output Current +3.3V: 25A
+5V: 22A
+12V: 60A
-12V: 0.3A
+5VSB: 3.5A
Max Output Power +3.3V & +5V: 150W
+12V: 720W
-12V: 3.6W
+5VSB: 17.5W
