Product Description
Bays
Number of External 3.5" Bays: 8
Number of External 5.25" Bays: 3
Number of Total Expansion Bays: 11
General Information
Brand Name: Intel
Manufacturer Part Number: P4308XXMHGC
Manufacturer Website Address: http://www.intel.com/
Manufacturer: Intel Corporation
Marketing Information: Versatile and Quiet Server Chassis Provides the Features and Flexibility You Need
Flexibility, efficiency, and quality make the Intel Server Chassis P4300M the natural choice for integrating Intel Server Boards or other standard CEB/EEB motherboards.
The Intel Server Chassis P4300M features support for a family of high efficiency and redundant-capable power supplies and provides the perfect balance of performance with low cost of ownership.
The locking front bezel opens to reveal up to eight 3.5" drive bays and room for up to three full size 5.25" devices so your server can expand to meet your evolving and diverse needs.
Standard cooling includes two non-redundant 120mm fans in front with one 80mm exhaust fan in the rear to keep even the highest performing system cool.
The Intel Server Chassis P4300M is less than 25 inches long and is rackable.
Available redundant cooling and hot-swap hard disk drive options provide high reliability features for your growing business.

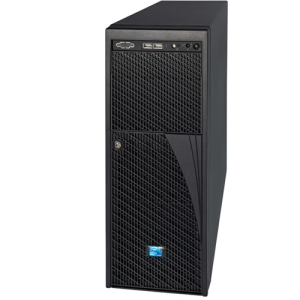

Product Name: Server Chassis P4308XXMHGC
Product Type: Computer Case
Miscellaneous
Package Contents: •Server Chassis P4308XXMHGC
•Backplanes
Physical Characteristics
Compatible Rack Unit: 4U
Form Factor: Pedestal
Form Factor: Rack-mountable
Power Description
Number of Power Supplies Installed: 2
Number of Power Supplies Supported: 2
Power Supply Wattage: 750 W
Redundant Power Supply: Yes
Technical Information
Motherboard Supported: SSI CEB
Motherboard Supported: SSI EEB
Number of Fans Supported: 2
Warranty
Limited Warranty: 3 Year
