Product Description
General Information
Brand Name: HP
Manufacturer Part Number: J9727A
Manufacturer Website Address: http://www.hp.com
Manufacturer: Hewlett-Packard
Marketing Information: The HP 2920 Switch Series consists of five switches: the HP 2920-24G and 2920-24G-PoE+ Switches with 24 10/100/1000 ports, and the HP 2920-48G and 2920-48G-PoE+ and 2920-48G 740W PoE+ Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or SFP connectivity.
In addition, the 2920 switch series supports up to four optional 10 Gigabit Ethernet (SFP+ and/or 10GBASE-T) ports, as well as a two-port stacking module. These options provide you with flexible and easy-to-deploy uplinks and stacking.

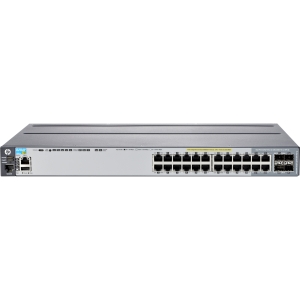

Product Model: 2920-24G-POE+
Product Name: 2920-24G-POE+ Switch
Product Series: 2920
Product Type: Layer 3 Switch
I/O Expansions
Expansion Slot Type: SFP+
Expansion Slot Type: Stacking Module
Number of SFP+ Slots: 4
Number of Total Expansion Slots: 7
Interfaces/Ports
Bypass: No
LRE Port: No
Management Port: Yes
Modular: Yes
Number of PoE+ (RJ-45) Ports: 24
Port/Expansion Slot Details: 24 x Gigabit Ethernet Network
Port/Expansion Slot Details: 3 x Expansion Slot
Port/Expansion Slot Details: 4 x 10 Gigabit Ethernet Expansion Slot
Token Ring Port: No
Total Number of Network Ports: 24
USB: Yes
Management & Protocols
Manageable: Yes
Management: •Intelligent Management Center
•Web-based Management
•CLI
•Telnet
•RMON 1, 2, 3, 9
•SNMP v1, v2c, v3
•QoS
•VLAN
•sFlow
•Syslog
•MIB II
Media & Performance
Ethernet Technology: Gigabit Ethernet
Media Type Supported: Twisted Pair
Network Technology: 10/100/1000Base-T
Memory
Flash Memory: 1 GB
Memory Technology: SDRAM
Standard Memory: 512 MB
Miscellaneous
Certifications & Standards: IEEE Standards:
•CE Labeled
•EN 60825-1
•FCC Part 15, Subpart B
•GOST
•EN 55022 Class A
•EN 55024: 1998
•C-Tick
•ICES-003, Class A
•VCCI Class A
•IEC 60950-1
•IEC 60825-1
•EN62479:2010
•CSA C22.2 No. 60950-1-07
•EN 60950-1:2006+A11:2009+A1:2010+A12:2011
•IEC 60950-1
Emissions:
•FCC Part 15 Class A
•VCCI Class A
•EN 55022
•CISPR 22 Class A
Green Compliance Certificate/Authority: EU RoHS
Green Compliance Certificate/Authority: REACH
Green Compliance Certificate/Authority: WEEE
Green Compliant: Yes
Package Contents: •2920-24G-POE+ Switch
•1 x X332 575W 100-240VAC to 54VDC PS
Network & Communication
Layer Supported: 3
Physical Characteristics
Compatible Rack Unit: 1U
Depth: 336 mm
Form Factor: Rack-mountable
Height: 44 mm
Weight (Approximate): 5.46 kg
Width: 442.5 mm
Power Description
Input Voltage: 110 V AC
Input Voltage: 220 V AC
PoE (RJ-45) Port: No
Power Source: Power Supply
Warranty
Limited Warranty: Lifetime
