Buttons & Keys: BIOS Flashback
EPU
EZ XMP
MemOK
Power
Reset
TPU
General Information
Brand Name: Asus
Manufacturer Part Number: 90MB0K50-M0UAY0
Manufacturer Website Address: http://www.asus.com
Manufacturer: ASUS Computer International
Marketing Information:
Intel® Core™ i7 Processor LGA2011-v3 Ready
This motherboard supports Intel® Core™ i7 processors in the LGA2011-v3 package, with memory and PCI Express controllers integrated to support 4-channel (8 DIMM) DDR4 memory and 40/28 PCI Express 3.0/2.0 lanes.
Intel® X99 Express Chipset
The Intel® X99 Express Chipset is a single-chipset design that supports socket LGA2011-v3 Intel® Core™ i7 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X99 provides a maximum 6 USB 3.0 ports, 10 SATA 6Gbit/s ports for faster data retrieval.
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 4
Number of Total Expansion Slots: 6
PCI Express Standard: PCI Express 2.0
PCI Express 3.0
Total Number of PCI Express Slots: 6
Interfaces/Ports
Audio Line In: Yes
Audio Line Out: Yes
Microphone Port: Yes
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of PS/2 Ports: 1
Number of S/PDIF Out Ports: 1
Number of USB 2.0 Ports: 4
Number of USB 3.0 Ports: 6
PS/2 Port: Yes
S/PDIF: Yes
Total Number of USB Ports: 10
Country of Origin: China
Green Compliance Certificate/Authority: RoHS
WEEE
Green Compliant: Yes

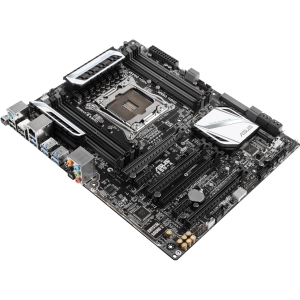

Package Contents: •X99-A Rev. 1.01 Desktop Motherboard
•User's Manual
•Q-Shield
•4 x SATA 6Gb/s Cables
•1 x SLI Bridge
•1 x Q-connector (2 in 1)
Network & Communication
Gigabit Ethernet: Yes
Onboard Interfaces
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.0 Ports: 4
Number of SATA Express Interfaces: 1
Number of SATA Interfaces: 8
Onboard S/PDIF Header: Yes
Onboard Serial Header: Yes
Onboard Thunderbolt Header: Yes
Total Number of Onboard USB Ports: 8
