Product Description
General Information
Brand Name: Intel
Manufacturer Part Number: DBS1200V3RPL
Manufacturer Website Address: http://www.intel.com/
Manufacturer: Intel Corporation
Marketing Information: Intel® Server Board S1200V3RP Family
Cost-effective single-socket server boards with small uATX form factor for small and medium businesses
The Intel® Server Board S1200V3RP family is a cost-effective, one-socket Intel® Xeon® processor E3 v3 product family solution
that has simple setup and deployment while offering a solid upgrade path, making it an ideal first server for small and medium businesses.
Product Model: S1200V3RPL

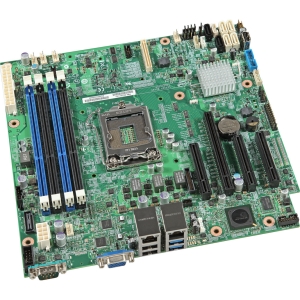

Product Name: S1200V3RPL Server Motherboard
Product Type: Server Motherboard
I/O Controller
Controller Type: Serial ATA
RAID Levels: 0
RAID Levels: 1
RAID Levels: 1+0
RAID Levels: 5
RAID Supported: Yes
I/O Expansions
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 1
Number of PCI Express x4 Slots: 1
Number of PCI Express x8 Slots: 1
Number of Total Expansion Slots: 4
PCI Express Standard: PCI Express 2.0
PCI Express Standard: PCI Express 3.0
Total Number of PCI Express Slots: 4
Interfaces/Ports
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Serial Port: Yes
Total Number of USB Ports: 4
VGA: Yes
Memory
Maximum Memory: 32 GB
Memory Form Factor: DIMM
Memory Form Factor: UDIMM
Memory Standard: DDR3-1333/PC3-10600
Memory Standard: DDR3-1600/PC3-12800
Memory Technology: DDR3 SDRAM
Number of Memory Slots: 4
Miscellaneous
Compatibility: 4U pedestal:
•P4308RPLSHDR
Package Contents: •S1200V3RPL Server Motherboard
•Intel® Server Board S1200V3RPL with (4)SATA Cables
•1 x Intel® Server Deployment & Management DVD
•1 x Attention Document
•1 x Quick Start User's Guide
Network & Communication
Gigabit Ethernet: Yes
Onboard Interfaces
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 6
Physical Characteristics
Depth: 243.8 mm
Form Factor: Micro ATX
Width: 243.8 mm
