Product Description

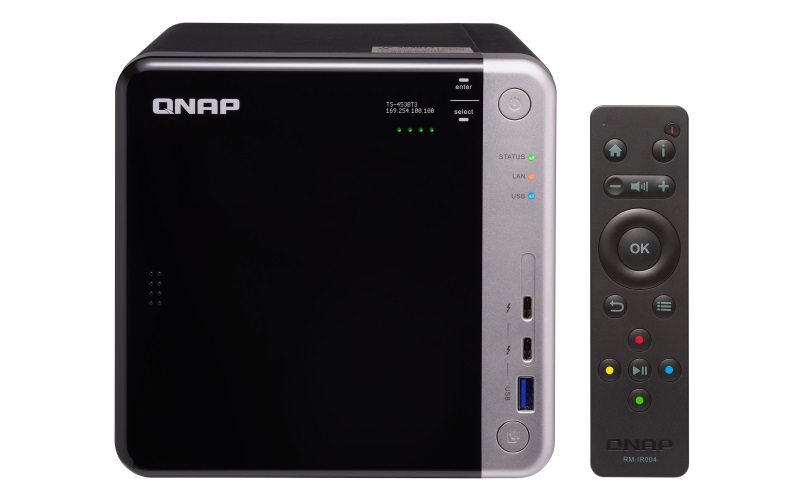

TS-453BT3-8G
CPU Processor: Intel® Celeron® J3455 quad-core 1.5 GHz, burst up to 2.3 GHz
Architecture: 64-bit
Graphics: Intel® HD Graphics 500
Encryption Engine: AES-NI
System Memory 8 GB RAM (2 x 4 GB DDR3L)
Maximum Memory 8 GB (2 x 4 GB)
Memory Slot 2 x SODIMM DDR3L
Drive Bay 4 x SATA 6 Gbps
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
M.2 SSD Slot 2 x M.2 2280 SATA 6 Gbp/s SSD
SSD Cache Acceleration Support • Drive bays 1 to 4
• M.2 slots 1 to 2
• Optional: SSD using PCIe expansion slot
Hot-swappable Yes
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
10 Gigabit Ethernet Port 1 x 10GBASE-T RJ-45
Gigabit Ethernet Port 2 x RJ45
PCIe Slot 1 x PCIe 2.0 x2
Note: Pre-installed with a QM2 expansion card that includes a 10GbE 10GBASE-T port and two M.2 SSD slots).
Thunderbolt Port 2 x Thunderbolt 3
USB Port 5 x USB 3.0 (Front: 1 x One Touch Copy; Back: 4)
HDMI Output 2 x HDMI 1.4b (up to 3840 x 2160 resolution at 30 Hz)
Audio • 2 x 3.5 mm dynamic microphone jacks
• 1 x 3.5 mm line-out jack
• 1 x speaker
Note: You cannot use the speakers and the line-out jack simultaneously.
Display Panel Monochrome OLED display with capacitive sensing Enter and Select buttons
USB One Touch Copy Front: USB 3.0 Type-A
IR sensor QNAP RM-IR004 remote control (MCE compatible)
Form Factor Tower
Dimensions (H x W x D) 168 x 170 x 226 mm
6.61 x 6.69 x 8.90 inch
Net Weight 2.51 kg (5.53 lbs)
Power Suply Unit 120W, 100-240V AC, 50/60Hz
Fan System: 1 x 12 mm
Operating Temperature & Relative Humidity 0 to 40°C (32 to 104°F), 5 to 95% non-condensing, wet-bulb 27°C (80.6°F)
Security Slot Kensington security slot
