Product Description

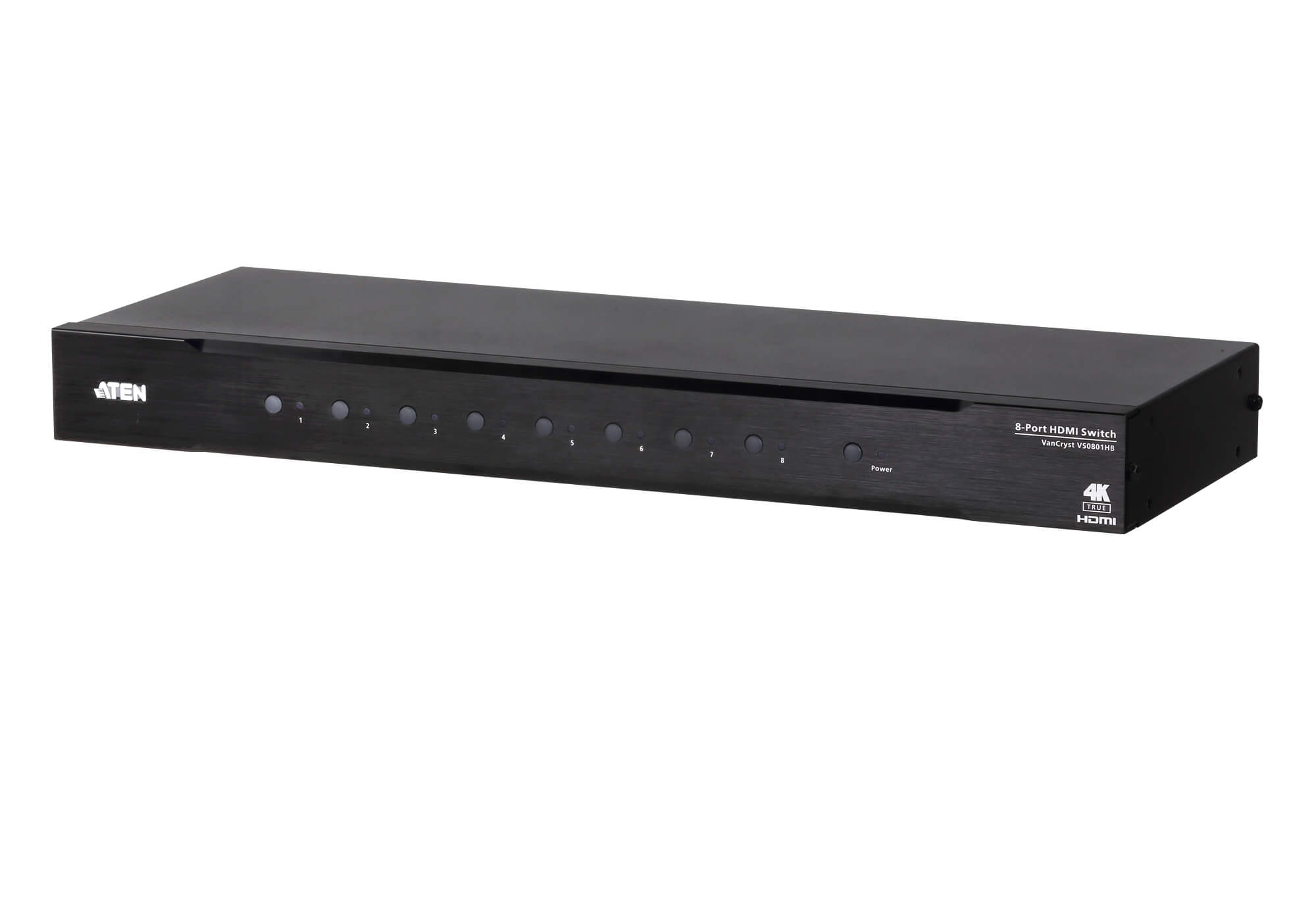

The ATEN VS0801HB is designed for applications that require the routing of 8 sources to one compatible display device. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. The VS0801HB features Auto Switching modes for auto port selection and Instant Switching for a smooth video transition between HDMI ports. Multiple convenient control options include front panel pushbuttons, bi-directional RS-232, IR, and auto switch, allowing for easy integration.
Engineered to meet today’s demand of True 4K signal transmission and user-oriented design, the ATEN VS0801HB is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.
Package Contents
1x VS0801HB 8-port True 4K HDMI Switch
1x IR Remote Control Unit
1x IR Receiver Cable
1x Power Adapter
1x Rack Mounting Kit
1x User Instructions
Switches
DIP 1 x Auto Switch ON / OFF
Video Input
Interfaces 8 x HDMI Type A Female (Black)
Impedance 100 ?
Max. Distance 3M
Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 ?
Max. Distance 3M
Video
Max. Data Rate 18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock 600 MHz
Compliance HDMI 2.0 (3D, Deep Color)
HDCP 2.2
Consumer Electronics Control (CEC)
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Distance 3M
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR 1 x Mini Stereo Jack Female (Black)
Connectors
Power 1 x DC Jack (with locking)
Power Consumption DC5.3V:3.73W:17BTU
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 2.14 kg ( 4.71 lb )
Dimensions (L x W x H) 43.72 x 15.83 x 4.40 cm
(17.21 x 6.23 x 1.73 in.)
Carton Lot 3 pcs
