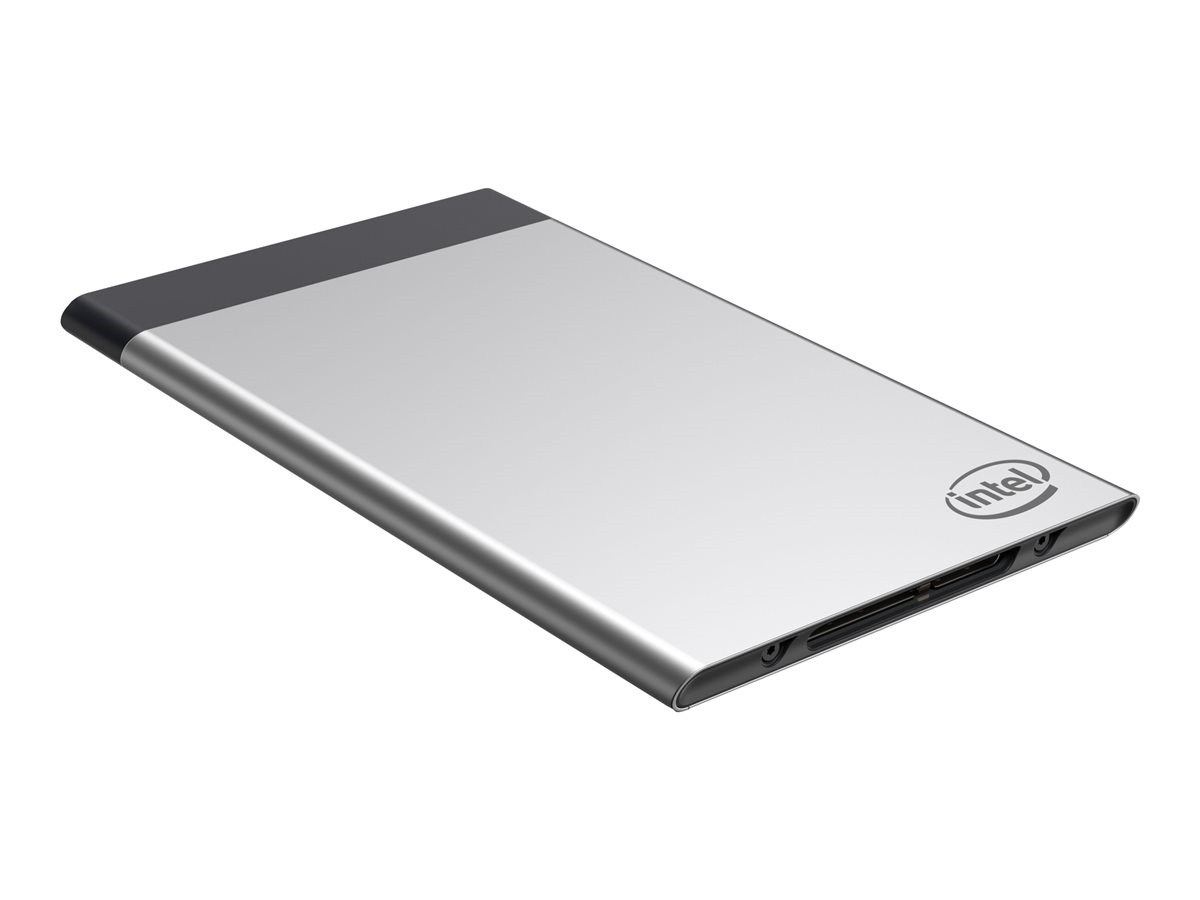

Intel® Compute Card is just slightly longer than a credit card, but it’s ready to power anything from entry-level to full featured devices. The modularity and flexibility of this computer on a card allows compute integration via card slot into devices like digital signage, kiosks, smart TVs, appliances and more.
Compute Card Features
Connect How You Want
Includes built-in integrated Wi-Fi and Bluetooth® wireless connectivity.
The Ideal Processors
Equipped with a range of processors, including 7th Gen Intel® Core™ vPro™ processor, to handle the toughest computing needs.
Secure Docking
Whether embedded inside the device or designed to be end-user accessible, the compute card remains secure via both hardware and software
Technical Specifications
Essentials
Socket Compute Card
Status Launched
Pre-Installed Operating System None
Launch Date Q3'17
DC Input Voltage Supported 12V +/- 5%
Warranty Period 3
Embedded Storage 128
Supplemental Information
Memory Specifications
Max # of Memory Channels 2
Memory Types LPDDR3 1866 MHz
Max Memory Size (dependent on memory type) 4 GB
ECC Memory Supported ‡ No
Pre-Installed Memory Yes
Graphics Specifications
# of Displays Supported ‡ 2
Integrated Graphics ‡ Yes
Graphics Output DisplayPort 1.2 and HDMI 1.4b via DDI
Audio (back channel + front channel) Digital Display Interface
Integrated Wifi Intel® Dual Band Wireless-AC 8265
Integrated Bluetooth Yes
Package Specifications
Low Halogen Options Available No
Advanced Technologies
