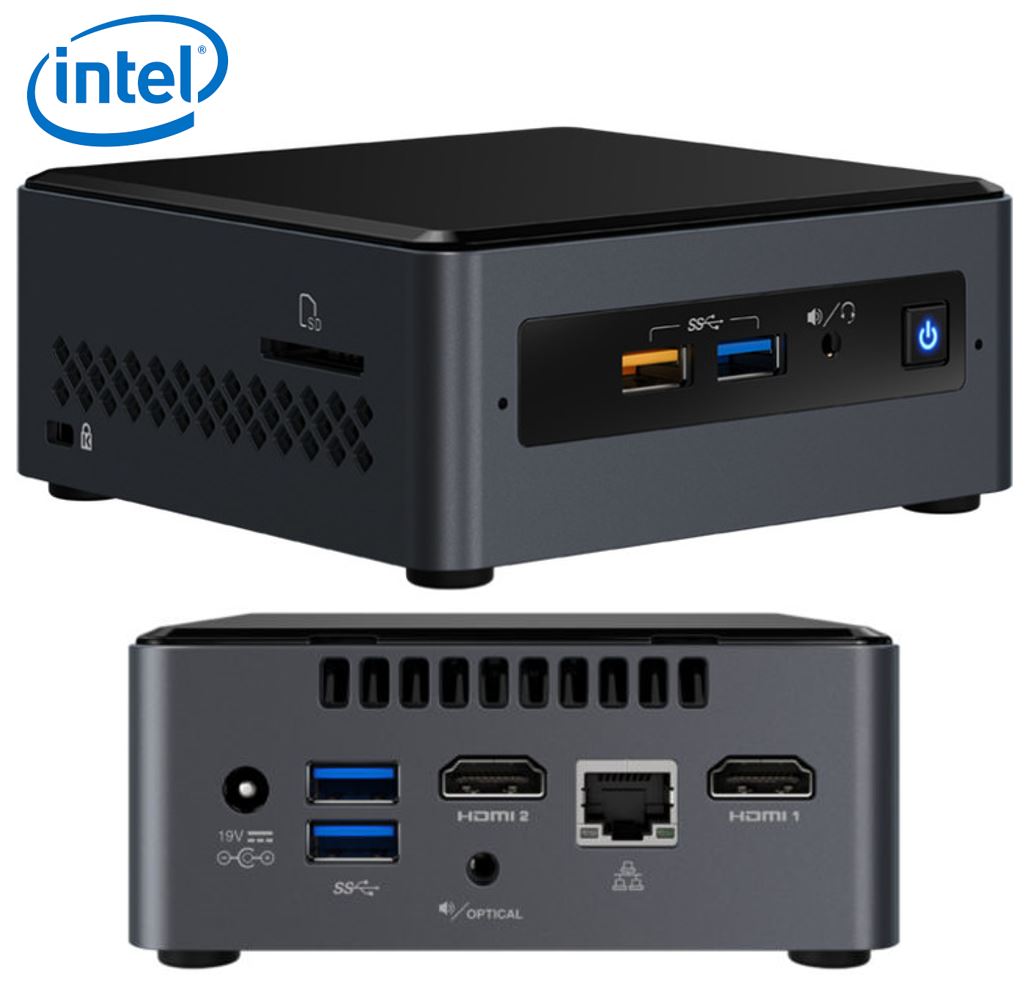

| INTEL NUC MINI PC KIT, CEL-J5005, DDR4(0/2), SATA-2.5"(0/1), WL-AC, USB3.0, 3YR WTY (BOXNUC7PJYH4) |
>> Go to INTEL's web site
|
|
$336
|
|
|
|
|
View all INTEL products
Contact I.Store for more information about this product
|
| |
|
Product CollectionIntel® NUC Kit with Intel® Pentium® Processors
Code NameProducts formerly JUNE CANYON
StatusLaunched
Launch DateQ1'18
Board Form FactorUCFF (4" x 4")
SocketSoldered-down BGA
Internal Drive Form Factor2.5" Drive
# of Internal Drives Supported1
Lithography14 nm
TDP10 W
DC Input Voltage Supported12-19 VDC
Processor IncludedIntel® Pentium® Silver J5005 Processor (4M Cache, up to 2.80 GHz)
Warranty Period3 yrs
Supplemental Information
Embedded Options AvailableNo
DescriptionOther features: Includes SDXC card slot, dual microphones
Memory & Storage
Max Memory Size (dependent on memory type)8 GB
Memory TypesDDR4-2400 1.2V SO-DIMM
Max # of Memory Channels2
Max Memory Bandwidth38.4 GB/s
Max # of DIMMs2
ECC Memory Supported ‡No
Processor Graphics
Integrated Graphics ‡Yes
Graphics Output2x HDMI 2.0a
# of Displays Supported ‡2
Expansion Options
Removable Memory Card SlotSDXC with UHS-I support
I/O Specifications
# of USB Ports6
USB Configuration2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
USB Revision2.0, 3.0
USB 2.0 Configuration (External + Internal)0 + 2
USB 3.0 Configuration (External + Internal)2B 2F + 0
Total # of SATA Ports1
Max # of SATA 6.0 Gb/s Ports1
RAID ConfigurationN/A
Audio (back channel + front channel)7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated LAN10/100/1000
Integrated Wireless‡Intel® Wireless-AC 9462
Integrated BluetoothYes
Consumer Infrared Rx SensorYes
S/PDIF Out ConnectorTOSLINK
Additional HeadersCEC, 2x USB2.0, AUX_PWR, FRONT_PANEL
Package Specifications
Low Halogen Options AvailableSee MDDS
Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
Intel® vPro™ Technology ‡No
TPMNo
Intel® HD Audio TechnologyYes
Security & Reliability
| |
| |
|
|
|
|
| |
|
