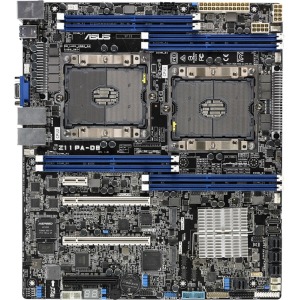

ASUS Z11PA-D8 EMBEDDED ASMB9-IKVM 2 X SOCKET P (LGA 3647) 8 (4-CHANNEL PER CPU 4 DIMM PER CPU) MAXIMUM UP TO 512GB LRDIMM/MAXIMUM UP TO 1024GB LR-DIMM 3DS EXPANSION SLOTS 3X 12 X SATA3 64MB VRAM (Z11PA-D8)
Contact I.Store for more information about this product
Click Here.
Product Description
Basic
Brand Name: Asus
Chipset Manufacturer: Intel
Controller Type: Serial ATA/600
Form Factor: SSI CEB
Gigabit Ethernet: Yes
Maximum Memory: 2 TB
Memory Form Factor: DIMM
LRDIMM
RDIMM
Memory Technology: DDR4 SDRAM
Number of M.2 Interfaces: 2
Number of Memory Slots: 8
Number of Mini-SAS Interfaces: 4
Number of Onboard USB 3.0 Ports: 2
Number of PCI Express x16 Slots: 2
Number of PCI Express x8 Slots: 1
Number of Total Expansion Slots: 3
Number of USB 3.0 Ports: 4
Onboard Video: On-board Video Chipset
Processor Socket: Socket P LGA-3647
Processor Supported: Xeon
Product Type: Server Motherboard
RAID Supported: Yes
Total Number of Onboard USB Ports: 4
Total Number of PCI Express Slots: 3
Total Number of USB Ports: 4
Total Processor Supported: 2
General Information
Brand Name: Asus
Manufacturer Part Number: Z11PA-D8
Manufacturer Website Address: http://www.asus.com/au
Manufacturer: ASUS Computer International
Product Model: Z11PA-D8
Product Name: Z11PA-D8 Server Motherboard
Product Type: Server Motherboard
I/O Controller
Controller Type: Serial ATA/600
Intel RSTe: Yes
Intel VROC: Yes
RAID Levels: 10
RAID Supported: Yes
I/O Expansions
Number of PCI Express x16 Slots: 2
Number of PCI Express x8 Slots: 1
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Interfaces/Ports
Number of USB 3.0 Ports: 4
Total Number of USB Ports: 4
VGA: Yes
Memory
Maximum Memory: 2 TB
Memory Form Factor: DIMM
LRDIMM
RDIMM
Memory Speed Supported: 2.67 GHz
Memory Technology: DDR4 SDRAM
Number of Memory Slots: 8
Miscellaneous
Country of Origin: China
Environmental Certification: RoHS
Environmentally Friendly: Yes
Network & Communication
Gigabit Ethernet: Yes
Onboard Interfaces
Number of M.2 Interfaces: 2
Number of Mini-SAS Interfaces: 4
Number of Onboard USB 3.0 Ports: 2
Total Number of Onboard USB Ports: 4
Physical Characteristics
Depth: 266.7 mm
Form Factor: SSI CEB
Weight (Approximate): 1.24 kg
Width: 304.8 mm
Processor & Chipset
Chipset Manufacturer: Intel
Processor Socket: Socket P LGA-3647
Processor Supported: Xeon
Total Processor Supported: 2
Video
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Onboard Video: On-board Video Chipset
