Product Description

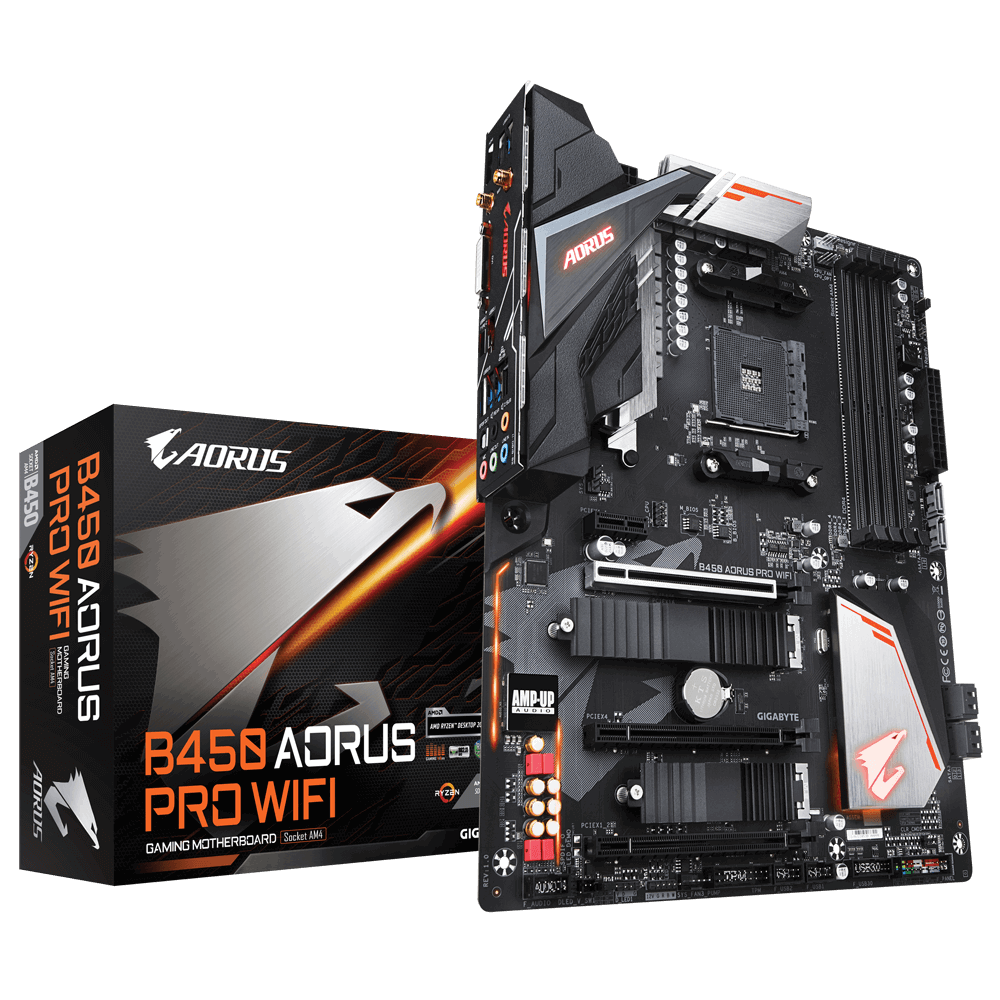

Gigabyte B450 AORUS PRO WIFI BLUETOOTH Ryzen AM4 2nd Gen ATX Motherboard 4xDDR4 4xPCIE 2xM.2 DVI HDMI RAID Intel GbE LAN 6xSATA 1xUSB-C 7xUSB3.1 RGB
Supports AMD 2nd Generation Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Intel® Dual Band 802.11ac WIFI & BT 4.2
HDMI, DVI-D Ports for Multiple Display
Integrated I/O Shield of Ultra Durable™ Design
Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with Dual Thermal Guards
ALC1220-VB Enhanced 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
RGB FUSION with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
Intel® GbE LAN with cFosSpeed Internet Accelerator Software
Smart Fan 5 Features 6 Temperature Sensors and 5 Hybrid Fan Headers with FAN STOP
APP Center Including EasyTune™ and Cloud Station™ Utilities
CEC 2019 Ready, Save Power with a Single Click
CPU AM4 Socket:
AMD Ryzen™ 2nd Generation processors
AMD Ryzen™ with Radeon™ Vega Graphics processors
AMD Ryzen™ 1st Generation processors
(Please refer "CPU Support List" for more information.)
Chipset
AMD B450
Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.2.
* Actual support may vary by CPU.
Maximum shared memory of 16 GB
Audio
Realtek® ALC1220-VB codec
