Product Description

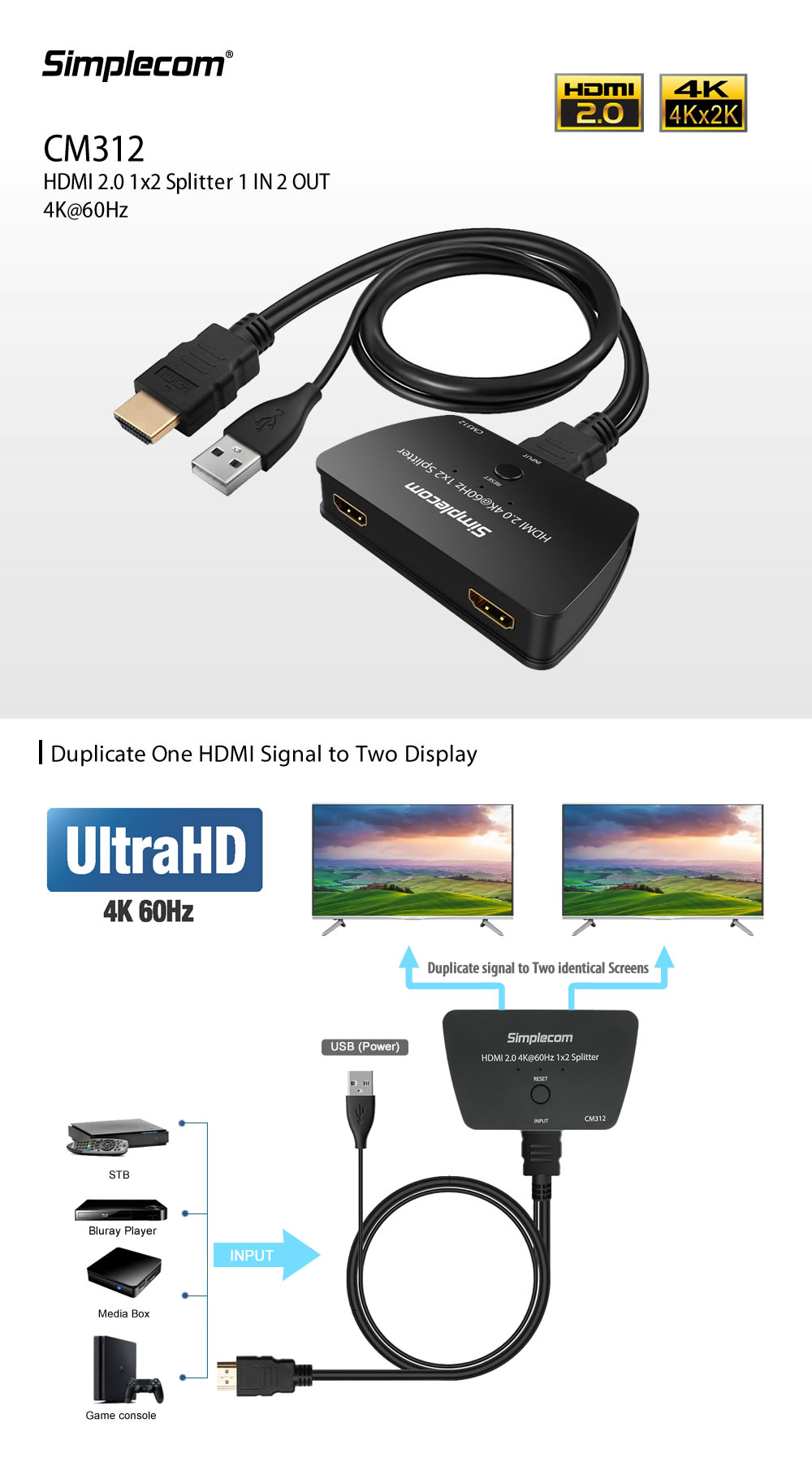

Simplecom CM312 HDMI 2.0 1x2 Splitter 1 In 2 Out 4K@60Hz UHD 3D 2 Port HDMI Duplicator
CM312 2 Port HDMI 2.0 1x2 splitter allows to duplicate one HDMI signal source device to two display terminal devices without loss quality. Widely compatible HDMI devices with HDMI 2.0 support, ideal for latest online streaming box and game console with 4K UHD HDMI output.
Features
Support HDMI 2.0, bandwidth up to 18Gpbs
Backward compatible with HDMI 1.4 and HDMI 1.3
Duplicate one HDMI input signal to two identical HDMI outputs
Support resolution up to 4K@60Hz (3840X2160)
Support HDCP 1.4
Support 3D
Support YUV420, 8/10/12 bit deep colour
Powered by USB
Compatible with Fetch TV, Apple TV, Blu-ray, Xbox, PS3, PS4 and PS4 Pro, Chromecast and more.
Specifications
HDMI version: HDMI 2.0a
HDMI resolution: 480i/480p/576i/576p/720p/1080i/1080p/2160p@ 60Hz
Input Ports: 1 x HDMI (Female type)
Output Ports: 2 x HDMI (Female type)
Support video format: 8/10/12 bit deep color
Support audio format: DTS-HD/Dolby-TrueHD/DTS/Dolby-AC3/DSD
Max bandwidth: 320MHz / 18Gbps
Max Input cable distance: 1080p<15m, 4K<12m (AWG26 HDMI cable)
Max Output cable distance: 1080p<25m, 4K<15m (AWG26 HDMI cable)
Max current: 500mA
Power requirement: USB DC5V 1A
Operating Temperature: (-15 to +55°C)
Dimension (L x W x H): 9x5.5x20mm
Weight: 153g
Package Contents
1 x HDMI 2.0 1x2 4K Splitter
1 x HDMI cable with USB
1 x User Manual
