Product Description
PRODUCT DESCRIPTION

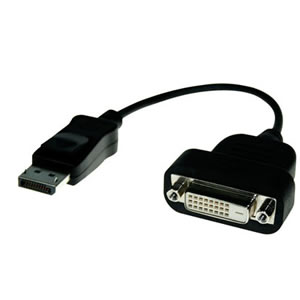

ALOGIC DisplayPort to DVI-D Dual-Link Adapter - Male to FemaleThe DisplayPort + USB to DVI Dual-Link converter seamlessly connects next generation DisplayPort enabled Ultrabooks/Laptops/Desktops with a DisplayPort output to displays with DVI input. Simply connect the DisplayPort (male) end of the connector to your computer and plug your existing DVI Dual Link cable from the display into the DVI (female) adapter. Now plug in the USB connector to your computer's USB port. Setup is complete, there is no software to install
The adapter offers an active conversion powered by a USB port with a maximum out of resolution up to 2560 X 1600(WQXGA) and all HDTV resolutions including 1080p.The adapter can be used to mirror or extend the content when used in a multiple monitor setup.
PRODUCT SPECIFICATION
Signal Inputs/Output
Input Video Signal 5 Volts p-p (TTL)
Output Video Dual-Link DVI
Input/Output Connector Input: DisplayPort Male + USB Male | Output: DVI Female (24+1)
Operating Frequency
Vertical Frequency Range 50/60Hz
Resolutions(HDTV) 1920x1080 for Single-link DVI
Max resolution 2560X1600 for Dual-link DVI
Warranty
1 Year
Environmental
Operating Temperature 0 ° C to +70 ° C
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10 ° C to +80 ° C
Storage Humidity 5% to 90 % RH (no condensation)
Power Requirement
External Power Supply No external power needed
Power consumption (Max) 3W
Regulatory Approvals
Converter Unit FCC,CE,UL
PRODUCT FEATURE
* Compliant with DisplayPort 1.1 specification
* Supports DVI Dual-Link Resolutions up to 2560x1600 (WQXGA) and 1080p HDTV's * Support deep color 24 bit
* Powered from DisplayPort source and USB Port
* Fast and Easy Setup, No Software to Install
