Product Description

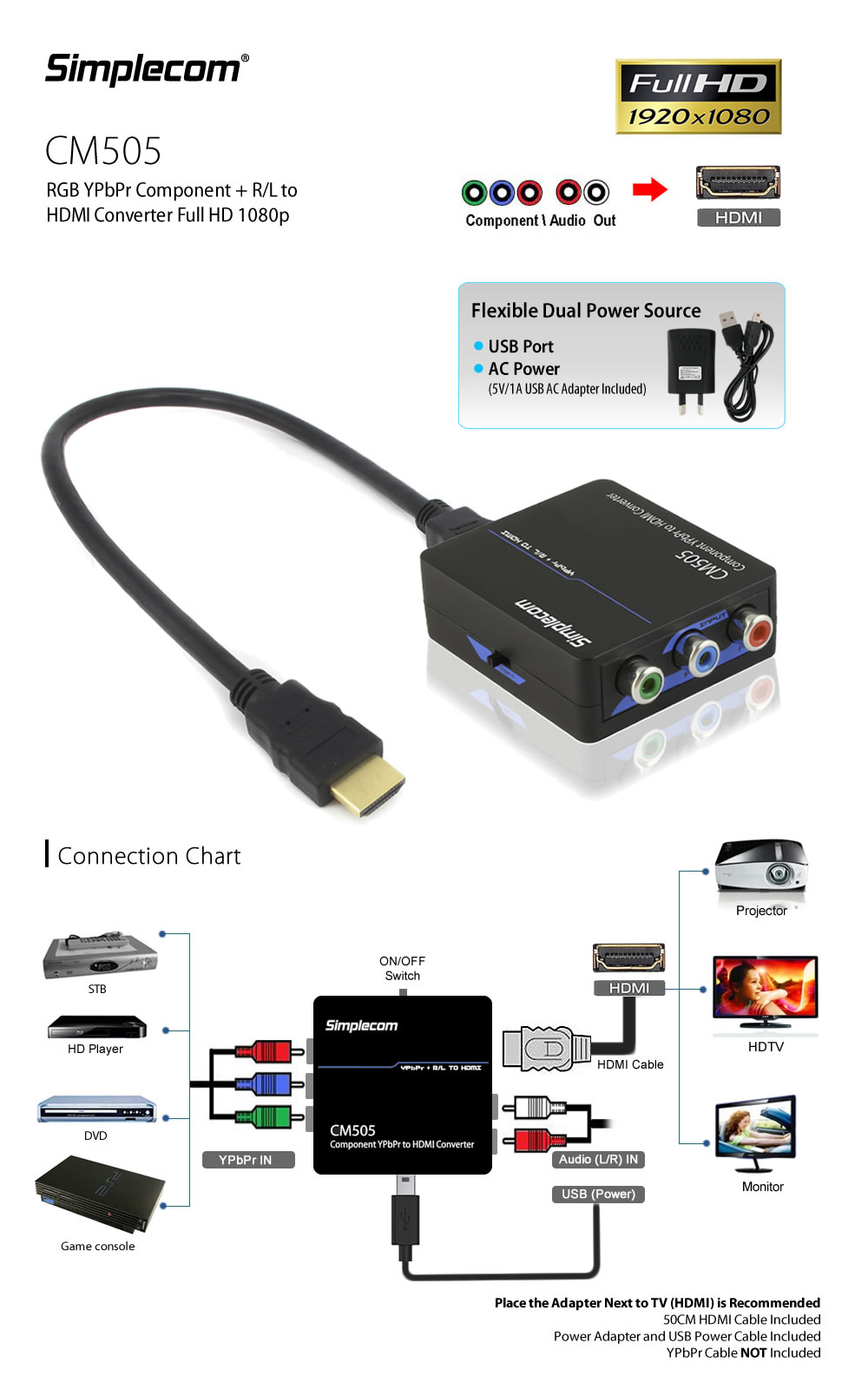

Simplecom CM505 RGB (YPbPr) Component to HDMI converter allows older analog devices to be integrated seamlessly into the modern home theatre. This adapter connects component video home theatre devices to HDMI compliant digital monitors. It also takes digital audio and encodes it onto the HDMI signal for the full HDMI video and audio effect. With the Component+ Digital Audio to HDMI Adapter legacy home theatre devices can be easily connected any HDMI display for the full digital video and audio experience.
Feature
•Input: Component Video (YPbPr) + Stereo Audio(R/L), Output: HDMI
•Powered by USB, plug into either USB wall adapter or a nearby USB port on PC or TV
•Supports full range of Component Video resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
•Support 225MHz/2.25Cbpsper channel (6.75Cbps all channel) bandwidth
•Support 12bit per channel (36bit all channel) deep color
•Support uncompressed 2 channel audio such as LPCM
•Supported audio format: 2 channel analog audio, does not support digital audio, will not convert audio only
Specifications
•Signal Input: Component (YPbPr) + R/L Stereo
•Output Video: HDMI
•DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
•Video Amplifier Bandwidth: 2.25Gbps/225MHz
•Vertical Frequency Range: 50/60Hz
•Interlaced Resolutions(50&60Hz): 480i,576i,1080i
•Progressive Resolutions(50&60Hz): 430p,576p,720p,1080p
•Operating Temperature: 0°C to 70°C
•Operating Humidity: 10% to 85% RH
•Storage Temperature: -10°C to +80°C
•Storage Humidity: 5% to 90% RH
•Power Supply: USB
•Power consumption(MAX): 5W
Package Contents
•1x CM505 YPbPr to HDMI converter
•1x HDMI Lead
•1x USB Power cable
•1x USB Wall Adapter
