Product Description
KEY FEATURES & BENEFITS
3 x Brighter Colours* and reliable performance – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white
brightness.
Edge Blending – Combine multiple individual images to create one seamless
giant image.
2 x Digital connections – Digital quality and flexibility.
360° Installation – Install on any plane, from horizontal to vertical and
everything in between.
Arc and Point Correction – Fine tune image geometry to perfection.
Passive 3D – For stacked 3D applications using polarised passive glasses.
Six optional Lenses with Lens Shift – Standard, Short, Wide, Rear, Middle or
Long throw for complete flexibility and easy exchange.

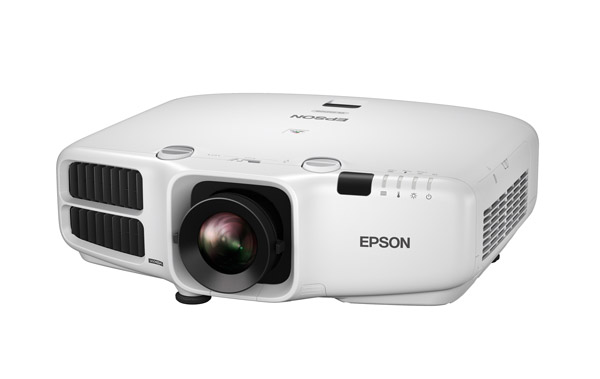

PRODUCT NAME: Epson EB-G6050W
PRODUCT CODE: V11H511053
TECHNOLOGY
Projection System: RGB liquid crystal shutter projection system
LCD Panel: 0.76-inch wide panel with MLA (D8, C2 Fine)
OPTICAL Zoom: 1 - 1.8 (Optical)
Screen Size
50" to 300" [1.35m to 8.36m] (Zoom: Wide)
50" to 300" [2.47m to 15.01m] (Zoom: Tele)
Projection Distance: 100" screen 2.75m - 4.98m
Throw Ratio: 1.26 (Zoom:Wide), 2.30 (Zoom:Tele)
Projection Lens F Number: 1.65-2.55
Projection Lens Focal Length: 21.28mm - 37.94mm
Focus Method: Manual
Colour Light Output: 5,500 Lumens
White Light Output: 5,500 Lumens
Resolution: WXGA
Native Aspect Ratio: 16:10
Contrast Ratio: 5,000:1
Lamp Hours:-
3,000 hours (Power Consumption: Normal (5))
4,000 hours (Power Consumption: ECO)
Lamp Type: 380 W UHE
Keystone Correction:-
Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees
Lens Shift:-
Vertical: -67% to +67%
Horizontal: -30% to +30%
Tilt Angle: -1.50 to 10 degrees
CONNECTIVITY
Input: Video 1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC
Input: Computer 1x D-sub 15-Pin (RGB)
Input: Digital 1 x HDMI, 1 x DisplayPort
Input: Audio 3 x Stereo mini-jack, 1 x RCA (Red/White), 1 x HDMI, 1 x DisplayPort
Input: Control 1 x RS232c, 1 x Stereo mini-jack (Remote)
Input: Network I/O 1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Wireless Connectivity: Optional
Output: Video 1 x Monitor Out (via D-sub 15-pin)
Output: Audio 1 x Stereo mini-jack
Speaker Output: 10W
ADVANCED FEATURES
EasyMP Network & Control: Yes
EasyMP Network Projection: Yes
Split Screen: Yes
Edge Blending: Yes
Arc Correction: Yes
360 Degress Projection: Yes
Instant Off: Yes
Direct Power On/Off: Yes
Security: Kensington® – style lock provision
Padlock & Security cable hole
Password protect function
Wireless LAN Lock
Lens Lock
Colour Modes:-
Photo, Presentation, Theatre Dynamic, sRGB, Multi-Projection, DICOM SIM, 3D Presentation, 3D Theatre, 3D Dynamic, 3D Multi-Projection
GENERAL
Dimensions D x W x H: 405.5 x 505 x 171 mm
Weight: 9.7kg (Including Standard Lens. Excluding Cable Cover)
Lamp Warranty: 1 Year or 750 Hours*
Projector Warranty: 4 Years or 10,000 Hours*
Power Consumption: Lamp on 477 W
Power Consumption: Standby 0.41 W
Noise Level: Normal/Eco: 37/31 dB
