Product Description

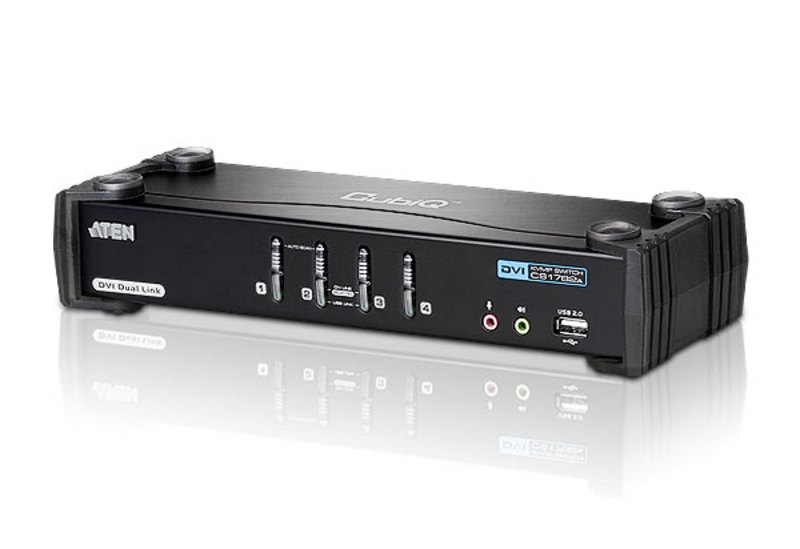

Product Name Aten 4 Port USB Dual-Link DVI KVMP Switch w/ USB Hub - Cables Included
Part No CS-1784
Manufacturer ATEN
Manufacturer Code CS1784C-AT-U
Weight 1.90 kg
The CS1784 DVI KVMP Switch charts a revolutionary new direction in KVM switch functionality by combining a 4-port KVM switch with a 2-port USB 2.0 hub at the same time as providing an interface for a DVI monitor and audio support.
One USB console controls four computers and two additional USB devices.
USB 2.0 compliant.
Full bass response provides a rich experience for 2.1 channel surround sound systems.
Console audio ports on front panel for easy access ideal for IP phone users.
Independent switching of KVM, USB, and Audio focus
DVI digital and analog monitor support fully compliant with the DVI specifications; also HDCP compliant.
Superior video quality - 3840 x 2400 (DVI Single Link)*; 2048 x 1536; DDC2B (DVI-A)
Supports widescreen resolutions.
Computer selection via front panel pushbuttons and hotkeys
Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice.
Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
HDCP Compliant.
Complete keyboard emulation for error-free booting
Sun/Mac keyboard support and emulation**
Auto Scan Mode for monitoring all computers
Firmware upgradeable
OS Support:Windows 2000, Windows XP/Vista, LINUX, Mac, Sun and FreeBSD
*2560x1600@60Hz (DVI Dual Link);3840x2400@13Hz (DVI Single Link) only supports specific monitor resolution
**1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers
