Product Description

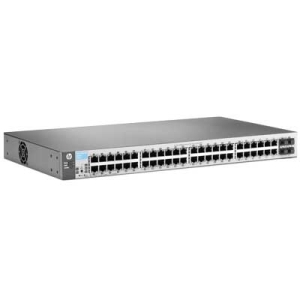

Manufacturer Part Number: J9981A
Information:
HP 1820 Switch Series devices are basic smart-managed, fixed-configuration Gigabit Ethernet Layer 2 switches designed for small businesses looking for key features in an easy-to-administer solution.
The series consists of 6 switches including 8-, 24-and 48 port Gigabit Ethernet switches and 8-, 24-, and 48 port Gigabit PoE+ models each providing non-blocking Gigabit per port performance. Some models include SFP ports for fiber connectivity and some are fanless, making them ideal for office deployments. All 1820 Switches support flexible installation options, including mounting on wall, under table, or on desktop. The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.
These Gigabit switches are plug-and-play out of the box, yet network operation can be fine-tuned through features available from a simple web browser-based GUI, if necessary. Customizable features include VLANs, Rapid Spanning Tree, IGMP Snooping, link aggregation trunking and DSCP QoS policies. All models include the latest energy-saving capabilities, including Energy Efficient Ethernet (EEE) and idle-port power down.
Expansion Slot Type: SFP
Number of SFP Slots: 4
Number of Total Expansion Slots: 4
Shared SFP Slot: No
Interfaces/Ports
Bypass: No
LRE Port: No
Management Port: No
Modular: No
Number of Network (RJ-45) Ports: 48
Port/Expansion Slot Details: 4 x Gigabit Ethernet Expansion Slot
48 x Gigabit Ethernet Network
Token Ring Port: No
Total Number of Network Ports: 48
USB: No
Uplink Port: No
Management & Protocols
Manageable: Yes
Management: •Web based management
•DHCP
•VLAN
•QoS
Media & Performance
Ethernet Technology: Gigabit Ethernet
Media Type Supported: Optical Fiber
Twisted Pair
Network Technology: 10/100/1000Base-T
1000Base-X
Emissions:
•FCC Class A
•EN 55022/CISPR-22 Class A
•VCCI Class A
Immunity:
•Generic: EN 55024, CISPR 24
•EN: EN 55024, CISPR 24
•ESD: IEC 61000-4-2
•Radiated: IEC 61000-4-3
•EFT/Burst: IEC 61000-4-4
•Surge: IEC 61000-4-5
•Conducted: IEC 61000-4-6
•Power frequency magnetic field: IEC 61000-4-8
•Voltage dips and interruptions: IEC 61000-4-11
•Harmonics: EN 61000-3-2, IEC 61000-3-2
•Flicker: EN 61000-3-3, IEC 61000-3-3
IEEE Standards:
•802.1D Spanning Tree Protocol
•802.1p Priority
•802.1Q VLANs
•802.1W Rapid Spanning Tree Protocol
•802.3ad Link Aggregation Control Protocol (LACP)
•802.3x
•802.3
•802.3u
•802.3ab
•802.3z
Network & Communication
Layer Supported: 2
Physical Characteristics
Colour: Grey
Compatible Rack Unit: 1U
Depth: 246.1 mm
Form Factor: Desktop
Rack-mountable
Under Table
Wall Mountable
Height: 43.9 mm
Weight (Approximate): 3.31 kg
Width: 442.5 mm
Power Description
Input Voltage: 120 V AC
230 V AC
PoE (RJ-45) Port: No
Power Source: Power Supply
