Product Description

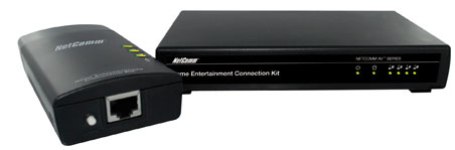

PRODUCT : NetComm AV Series Home Entertainment Connect Kit
MAIN CHIPSET : Intellon INT6400
INTERFACE : IEEE802.3; IEEE802.3u
STANDARDS : HomePlug AV
NETWORK INTERFACE: 4 x RJ-45
1 x 200Mbps Power Line Port supp co-existence with 14/85Mbps HomePlug
SECURITY: 128-bit AES Link Encryption with Key Management
DATA TRANSFER RATE: 200 Mbps over Powerline and 10/100Mbps over Ethernet
MODULATION : OFDM Symbol Modulation on Line synchronization
1024/256/64/16/8 - QAM, QPSK, BPSK, ROBO Carrier Modulation
FREQUENCY BAND : 2 ~ 28 Mhz
ADDITIONAL PROTOCOLS : Mix of TDMA & CSMA/CA channel access scheme;
CO device generates a periodic beacon carrier for channel access scheme
* Kit consists of a 4-port desktop powerline adapter & a single port
desktop powerline adapter
* High speed data rates of up to 200Mbp
* Ideal for connection of multiple Internet enabled devices within a home
entertainment environment connect up to four devices
* Range of up to 300 metres (point to point)
* Security push button for simple setup of powerline network
* Extend or create an Ethernet network using existing household
powerpoints
