Product Description

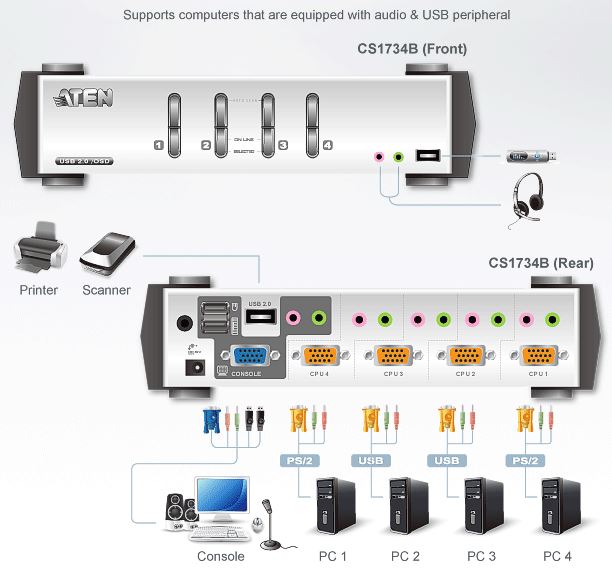

The CS1734B is 4-port KVM switch combined with a 2-port USB 2.0 hub.
As a KVM switch, it allows users to access four computers from a single keyboard, monitor, and mouse console.
There are three methods to obtain instant access to any computer in your installation: Manual, Hotkey, OSD, and mouse
4-port KVM switch with USB 2.0 support and 2.1 surround sound audio
One console controls four computers and two additional USB devices
2-port USB 2.0 hub built in
Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems
Console audio ports on front panel for easy access - ideal for IP phone users
Supports both USB and PS/2 keyboards and mice - flexible configurations available with the included USB-to-PS/2 converter:
USB keyboard and mouse; PS/2 keyboard and mouse; or PS/2 keyboard and USB mouse
Independent switching of KVM, USB, and Audio focus
Superior video quality; 2048 x 1536; DDC2B
Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), and mouse
Supports widescreen resolutions
Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, and Sun
Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
Complete keyboard emulation for error-free booting
Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Auto Scan Mode for monitoring all computers
LED Display for easy status monitoring
Easy installation no software required
Firmware upgradeable
SUN/Mac keyboard support and emulation*
*2.SUN/Mac keyboards only work with their own computers
Computer Connections 4
Port Selection OSD; Hotkey; Pushbutton; Mouse
Connectors Console Port Keyboard 1 x USB Type A Female (Black)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x USB Type A Female (Black)
Speaker 2 x Mini Stereo Jack Female (Green)
Mic. 2 x Mini Stereo Jack Female (Pink)
KVM Port Keyboard 4 x SPHD-15 Female (Yellow)
Video
Mouse
Speaker 4 x Mini Stereo Jack Female (Green)
Mic. 4 x Mini Stereo Jack Female (Pink)
Firmware upgrade 1 x 4-conductor 3.5mm Jack (Black)
Power 1 x DC Jack
USB Hub 2 x USB Type A Female (White)
Switches Selected 4 x Pushbutton
LEDs On Line/ Selected 4 (Orange)
USB Link 4 (Green)
Emulation Keyboard / Mouse PS/2; USB
Video 2048 x 1536 @ 60Hz; DDC2B
Scan Interval 1-255 seconds (Default: 5 sec.)
Power Consumption DC5.3V, 3.4W
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.78 kg
Dimensions ( L x W x H ) 21.00 x 8.70 x 5.50 cm
* The specification and pictures are subject to change without notice.
