Product Description
PRODUCT
Brand Name Intel
Manufacturer Web Site http://www.intel.com
Product Line Not defined
Product Model Not defined

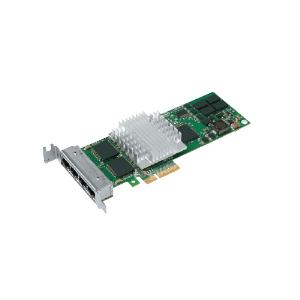

Product Type Server Adapter
DEVICE FEATURES
Ports 4 X RJ-45
Bus Type PCI Express
Network Topology 10BASE-T, 100BASE-TX, 1000BASE-T
Data Rate Supported 10/100/1000Mbps
Processor Manufacturer Intel
Processor Model 82571GB
Interrupt Levels INT A
DIMENSIONS
Depth (mm) 167.6
Height (mm) 19.1
Width (mm) 19.1
OTHER FEATURES
IEEE Compliance 802.3ab
Network Management * Wired for Management (WfM) baseline v2.0 enabled for servers.
* DMI 2.0 support, Windows Management Instrumentation (WMI) and SNMP-manageable SMBus support.
* Remote Installation Services (RIS).
* Diagnostics (loopback, testability, PHY register access).
* Advanced configuration and power interface (ACPI) 1.0 power management.
* PXE 2.0 enabled through boot read-only memory (ROM).
Cable Distance 100m
Cable Wiring Category 3
Quantity 1
OS Supported Linux
OS Supported Novell NetWare
OS Supported Solaris
OS Supported Windows 2000
OS Supported Windows Server 2003
Power Consumption 4.95Watt
Operating Temperature 0 to 55°C
Other Features * Interrupt levels - INTA, INTB, INTC, INTD.
* Enables higher bandwidth and throughput from standard and low-profile PCIe slots and servers.
* Accelerates I/O with higher throughput and lower CPU utilization by offloading processing overhead.
* Multi-port cards provide the platform with the port density required for virtualized environments.
* Delivers increased performance while significantly reducing CPU utilization.
* Support for most network operating systems (NOS)
