Product Description

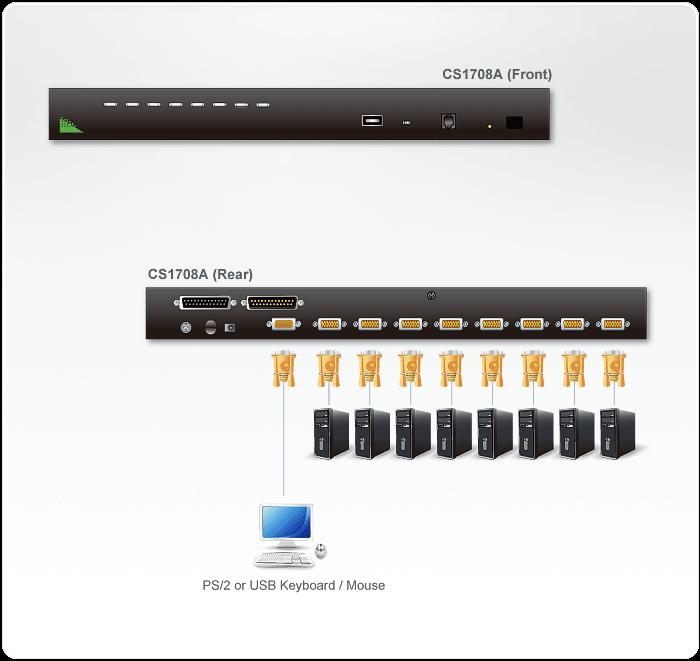

The CS1708A KVM switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single CS1708A can control up to 8 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 256 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis.
One USB-PS/2 console controls up to 8 computers
Daisy-chain up to 31 additional units - control up to 256 computers from a single console
Front accessible USB port allows each computer to access USB peripherals
Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Supports multimedia USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
Superior video quality - up to 2048 x 1536; DDC2B
No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
Port names automatically reconfigured when station sequence is changed
Two level password security; only authorized users view and control computers; up to four users and an administrator with separate profiles for each
Auto Scan feature for monitoring user-selected computers
Broadcast Mode - operation simultaneously performed on all selected computers... etc
Hot pluggable - add or remove computers without having to power down the switch
Buzzer on/off via hotkey and OSD
Firmware upgrades to all the chained KVM switch at the same time via the daisy-chain cable
Rack mountable in 19" system rack (1U)
Computer Connections Direct 8
Max. 256 (via Daisy-chain)
Port Selection On-screen display (OSD); Hotkeys; Pushbutton switches
Connectors Console Port 1 x SPHD-18 Male (Yellow)
KVM Ports 8 x SPHD-15/17 Female (Yellow)
Daisy-chain In 1 x DB-25 Female (Black)
Out 1 x DB-25 Male (Black)
FW Upgrade 1 x RJ-11 Female (Black)
USB Port 1 x USB Type A Female
Power 1 x DC Jack Female (Black)
LEDs On Line 8 (Orange)
Selected 8 (Green)
Station ID 1 x 2-digit, 7-segment (Orange)
Power 1 (Dark Green)
Switche Port Selection 8 x Pushbutton
FW Upgr. Rec. 1 x Slide
Emulation Keyboard/Mouse PS/2, USB
Video 2048 x 1536; DDC2B
Scan Interval (OSD Select) User Specified: 1-255 sec.
Power Consumption DC 5.3 V; 5 W
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 2.66 kg
Dimensions
(L x W x H) 43.30 x 16.00 x 4.40 cm
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
