Product Description
General Information
Brand Name: HP
Manufacturer Part Number: J9624A
Manufacturer Website Address: http://www.hp.com
Manufacturer: Hewlett-Packard

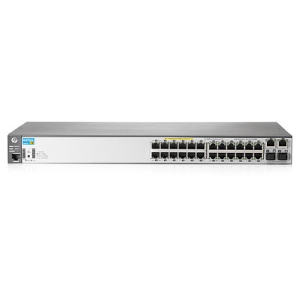

Marketing Information: The HP E2620 Switch Series consists of five switches with 10/100 connectivity. The HP E2620-24 Switch is a fanless switch with quiet operation, making it ideal for deployment in open spaces. The HP E2620-24-PPoE+ Switch, HP E2620-24-PoE+ Switch, and HP E2620-48-PoE+ Switch are IEEE 802.3af- and IEEE 802.3at-compliant and provide up to 30 W per powered port. All E2620 series switches include two 10/100/1000BASE-T ports and two SFP slots for Gigabit Ethernet uplink connectivity. An optional redundant external power supply is also available to provide redundancy in the event of a power supply failure. With IPV4/IPv6 static and RIP routing, robust security and management features, free lifetime warranty, and free software updates, the HP E2620 Switch Series is a cost-effective solution for customers who are building converged enterprise edge networks.
Product Model: E2620-24-PPoE+
Product Name: E2620-24-PPoE+ Layer 3 Switch
Product Series: E2620
Product Type: Layer 3 Switch
I/O Expansions
Expansion Slot Type: SFP
Number of SFP Slots: 2
Number of Total Expansion Slots: 2
Interfaces/Ports
LRE Port: No
Number of Network (RJ-45) Ports: 12
Number of PoE+ (RJ-45) Ports: 12
Port/Expansion Slot Details: 2 x Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details: 2 x Gigabit Ethernet Uplink
Port/Expansion Slot Details: 24 x Fast Ethernet Network
Token Ring Port: No
Total Number of Network Ports: 24
Uplink Port: Yes
Management & Protocols
Manageable: Yes
Management: •QoS
•DHCP
•Web-based Management
•SNMP v1, v2c, v3
•RMON 1, 2, 3, 9
•sFlow
•CLI
•MIB
•VLAN
•Telnet
Media & Performance
Ethernet Technology: Fast Ethernet
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network Technology: 10/100Base-TX
Memory
Flash Memory: 512 MB
Memory Technology: SDRAM
Standard Memory: 512 MB
Network & Communication
Layer Supported: 3
Physical Characteristics
Compatible Rack Unit: 1U
Depth: 254 mm
Form Factor: Desktop
Form Factor: Rack-mountable
Form Factor: Wall Mountable
Height: 43.9 mm
Weight (Approximate): 3.19 kg
Width: 443 mm
Power Description
Input Voltage: 110 V AC
Input Voltage: 220 V AC
PoE (RJ-45) Port: Yes
Power Source: Power Supply
Redundant Power Supply: Yes
