Product Description
General Information
Brand Name: HP
Manufacturer Part Number: J9775A
Manufacturer Website Address: http://www.hp.com
Manufacturer: Hewlett-Packard
Marketing Information: The HP 2530 Switch Series consists of four fully managed Layer 2 edge switches, delivering cost-effective, reliable, and secure connectivity for business networks. Designed for entry-level to midsize enterprise networks, these Gigabit Ethernet switches deliver full Layer 2 capabilities with enhanced access security, traffic prioritization, IPv6 host support, and optional PoE+, and include a product lifetime warranty.
Each 2530 switch has 24 or 48 RJ-45 10/100/1000 ports and four small form-factor pluggable (SFP) slots for fiber connectivity. For customers implementing Power over Ethernet for voice, video, or wireless deployments, the HP 2530-24G-PoE+ and the HP 2530-48G-PoE+ Switches are IEEE 802.3af and IEEE 802.3at compliant with up to 30 W per port.
Product Model: 2530-48G

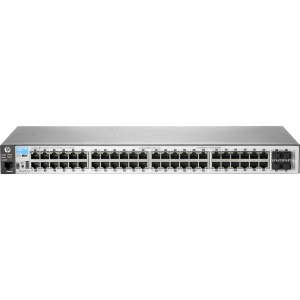

Product Name: 2530-48G Switch
Product Series: 2350
Product Type: Ethernet Switch
I/O Expansions
Expansion Slot Type: SFP
Number of SFP Slots: 4
Number of Total Expansion Slots: 4
Shared SFP Slot: No
Interfaces/Ports
Bypass: No
LRE Port: No
Management Port: Yes
Modular: No
Number of Network (RJ-45) Ports: 48
Token Ring Port: No
Total Number of Network Ports: 48
USB: No
Uplink Port: Yes
Management & Protocols
Manageable: Yes
Management: •MIB II
•CLI
•SNMP v1/v2c/v3
•QoS
•VLAN
•GUI
•DHCP
•TELNET
•RMON 1,2,3,9
Media & Performance
Ethernet Technology: Gigabit Ethernet
Media Type Supported: Twisted Pair
Network Technology: 10/100/1000Base-T
Memory
Flash Memory: 256 MB
Memory Technology: DDR3 SDRAM
Standard Memory: 128 MB
Miscellaneous
Certifications & Standards: Emissions:
•FCC Class A
•EN 55022/CISPR-22 Class A
•VCCI Class A
IEEE Protocols:
Network & Communication
Layer Supported: 2
Physical Characteristics
Compatible Rack Unit: 1U
Depth: 254 mm
Form Factor: Desktop
Form Factor: Rack-mountable
Form Factor: Wall Mountable
Height: 44.5 mm
Weight (Approximate): 3.08 kg
Width: 443 mm
Power Description
Input Voltage: 110 V AC
Input Voltage: 220 V AC
PoE (RJ-45) Port: No
Power Source: Power Supply
Redundant Power Supply: No
Warranty
Limited Warranty: Lifetime
